Metal 3D Printing

In the ever-evolving landscape of manufacturing and technology, the advent of metal 3D printing has marked a groundbreaking chapter. The fusion of additive manufacturing and metallurgy has given rise to a transformative technology that holds immense significance in the contemporary world of production and design. As we delve into the world of metal 3D printing, we will explore not only the technological marvels it brings but also its profound impact on various industries. From materials to printers, applications to innovations, this article will be your comprehensive guide to understanding the extraordinary realm of metal 3D printing and its far-reaching implications.

Metal 3D Printers

Metal 3D printers, also known as metal additive manufacturing machines, are cutting-edge devices that use advanced techniques to create three-dimensional objects from metal powders or other metal materials. These printers have revolutionized the manufacturing industry by offering unprecedented flexibility, precision, and design freedom. Here, we explore the key aspects of metal 3D printers:

3d systems metal printer

Printing Process

Metal 3D printing, or metal additive manufacturing, is a cutting-edge technology that fundamentally transforms how we create metal parts and components. This innovative process, in stark contrast to the traditional methods of subtractive manufacturing methods where material is removed from a solid block, relies on additive techniques to meticulously construct objects, layer by layer.

The heart of the metal 3D printing process lies in its meticulous layer-by-layer construction, which sets it apart from conventional manufacturing methods. Here’s a closer look at how it operates:

1. Digital Blueprint: The process begins with a digital 3D model of the object to be manufactured. This model is a virtual representation of the final product, complete with all its intricacies and details.

2. Slicing into Layers: The digital 3D model is sliced into a series of extremely thin, horizontal layers. Each layer represents a cross-section of the object, essentially breaking down the 3D structure into 2D layers.

3. Layer Deposition or Fusion: The metal 3D printer then takes over. It selectively deposits or fuses metal material, one layer at a time, to create support structures for the physical object. This is the heart of the additive manufacturing process, as it meticulously builds support structure for the metal injection molding final product from the ground up.

4. Layer-by-Layer Building: The printer meticulously continues this process, layer by layer, until the entire 3D model has been transformed into a tangible, three-dimensional object. Each layer is securely bonded to the one beneath the next layer below it, ensuring structural integrity and precision.

This layer-by-layer construction is the essence of metal 3D printing, revolutionizing how we create intricate and complex metal components. The process opens doors to manufacturing items that were once thought to be too challenging or costly to produce with traditional methods. Metal 3D printing’s adaptability and precision make it a game-changer in industries such as aerospace, healthcare, automotive, and more, where the demand for intricate and customized metal parts continues to grow.

Metal Powders

The key to the incredible versatility of metal 3D printers lies in their primary raw material: metal powders. These finely powdered materials, typically ranging from microscopic particles to a few dozen microns in size, serve as the foundation for the complex and precise layer-by-layer construction process.

Metal Powders used in 3D metal printing

Here’s a closer look at the role and diversity of metal powders in the world of metal 3D printing:

1. Metal Diversity: Metal powders are available in a vast array of materials, spanning numerous metals and metal alloys. These include stainless steel, titanium, aluminum, nickel, cobalt-chrome, and many more. The selection of metal depends on the specific requirements of the final product. For instance, if strength and durability are paramount, stainless steel or titanium may be chosen. In contrast, if heat resistance is crucial, nickel-based metal alloys are often preferred.

2. Tailored Properties: The metal powder selection isn’t arbitrary but is determined by the desired properties of the end product. In industries like aerospace, where components need to withstand extreme conditions, the choice of a nickel alloy with exceptional heat resistance becomes imperative. Similarly, lightweight parts used in the automotive sector, aluminum alloys are popular for their lightweight yet robust nature.

3. Beyond Metals: Some metal 3D printers offer the flexibility to work with more than just metal powders. They can handle metal composites and ceramics, further expanding the realm of possibilities. This adaptability enables the production of larger machines with complex and multifaceted components, transcending the constraints of traditional manufacturing processes.

The sheer diversity and adaptability of metal powders empower manufacturers to create intricate and customized components across a broad spectrum of industries. As technology advances, the range of materials compatible with metal 3D printers continues to expand, driving innovation and revolutionizing the production of metal parts and products.

Printing Technologies

There are several metal 3D printing technologies available:

3d systems metal printer
  • Direct Metal Laser Sintering (DMLS): This method uses a high-powered laser to selectively fuse metal powders layer by layer. DMLS is known for its precision and ability to create complex geometries.
  • Selective Laser Melting (SLM): SLM also employs lasers to melt and fuse metal powders. It’s often used for creating high-strength, fully dense metal parts.
  • Electron Beam Melting (EBM): Instead of lasers, EBM uses an electron beam to melt and fuse metal powders. It’s suitable for manufacturing components with intricate internal structures.
  • Binder Jetting: This technology involves depositing a binding agent onto metal powder layers to create a “green” part. After printing, the green part is sintered to remove the binder and fuse the metal particles.

Leading 3D Printing Technologies and Their Printer Models

When it comes to metal 3D printing, several manufacturers have made significant strides in developing cutting-edge machines that cater to various industries and applications. Here, we’ll introduce some of the prominent manufacturers and their notable metal 3D printer models:

1. EOS (Electro Optical Systems)

EOS is a leading name in the world of metal 3D printing, renowned for its innovation and cutting-edge technology. Within the EOS lineup, you’ll find a range of solutions tailored to various industrial needs. Two notable series are the EOS M 400 Series and the EOS M 100, each offering unique advantages.

EOS M 400 Series

EOS M 400 Series: The EOS M 400 Series is a testament to scalability, boasting a large build volume that makes it ideal for industrial-scale production. Models like the EOS M 400 and EOS M 400-4 are engineered to meet the demands of high-precision applications with utmost reliability. These robust printers are well-suited for industries where precision and repeatability are critical. Whether you’re crafting intricate components or producing large, complex metal parts, the EOS M 400 Series delivers the consistency and quality required for industrial success.

EOS M 100: Compact Versatility In a more compact form, the EOS M 100 steps forward as a versatile solution. This printer offers the flexibility to produce small to medium-sized metal parts efficiently. While maintaining precision and reliability, the EOS M 100 emphasizes cost-effectiveness, making it an attractive choice for businesses seeking to optimize production processes without compromising on quality. Whether you’re exploring additive manufacturing for the first time or need a complementary system to enhance your existing workflow, the EOS M 100 delivers the performance and value you need.

2. SLM Solutions

SLM Solutions is a renowned player in the metal 3D printing field, offering a range of industrial-grade printers. Among their offerings, the SLM 500 and SLM 280 stand out, each tailored to specific needs.

SLM 500

SLM 500: The SLM 500 is a flagship model from SLM Solutions, designed to meet the demands of industries that require both complexity and precision. Equipped with a multi-laser system, this printer excels at handling intricate geometries and accommodating large builds. It is often the preferred choice for sectors such as aerospace and healthcare, where the production of intricate, high-precision metal components is paramount. With the SLM 500, businesses can take on challenging projects with confidence, knowing they have the technology to bring their innovative designs to life.

SLM 280: Flexibility and Versatility For applications that require flexibility, the SLM 280 is a mid-sized printer that shines. It’s a versatile workhorse suitable for research, development, and small-batch production. What sets the SLM 280 apart is its high flexibility in material choices, allowing businesses to experiment and innovate with a wide range of metal materials. Whether you’re in the early stages of product development or you need a reliable production system used for small-scale production, the SLM 280 provides the versatility required to adapt to your evolving needs. Its compact footprint makes it a valuable addition to research facilities and production environments alike.

3. Concept Laser (now part of GE Additive)

Concept Laser, now proudly under the umbrella of GE Additive, is a pioneer in the metal 3D printing industry. Their M2 Series, which encompasses models such as the M2 cusing and M2 cusing Multilaser, offers a prime example of their commitment to innovation, quality parts and excellence.

metal binder jet technology

M2 Series: Precision and Speed Unleashed The M2 Series from Concept Laser is celebrated for its remarkable blend of precision and speed, making it an invaluable asset for applications requiring serial production. These machines are engineered to deliver outstanding results with a focus on efficiency.

  • M2 cusing: This model stands out for its ability to produce metal parts with exceptional precision. Its advanced capabilities ensure that every component, no matter how intricate, is crafted with the utmost accuracy. Whether you’re in aerospace, automotive, or healthcare, the M2 cusing is well-equipped to meet your high-precision demands.
  • M2 cusing Multilaser: Building upon the foundation of the M2 Series, the M2 cusing Multilaser takes efficiency to the next level. With its multiple laser systems, it accelerates the printing process, reducing production times while maintaining the impeccable precision Concept Laser is known for. Industries with requirements for high-speed manufacturing, like aerospace and automotive, find this model particularly beneficial for their production pipelines.

4. Renishaw

Renishaw, a name synonymous with innovation and precision, has made a significant mark in the realm of metal 3D printing. One of their standout offerings, the RenAM 500M, hails from the impressive RenAM series, representing a combination of cutting-edge, additive technology, and user-friendly design.

RenAM 500M

RenAM 500M: Where Precision Meets Reliability The RenAM 500M is a testament to Renishaw’s commitment to providing top-tier metal 3D printing solutions. Its distinguishing features include high-powered lasers and advanced control systems, facilitating precise metal powder fusion. This is particularly crucial for industries where precision is non-negotiable, such as aerospace, medical, and automotive.

One of the hallmark attributes of the RenAM 500M is its exceptional reliability. This printer is engineered to perform consistently, project after project, ensuring that businesses can depend on it for their critical applications. Furthermore, the ease of use sets it apart, making it accessible for both experts and newcomers to the world of metal 3D printing.

5. GE Additive (including Arcam and Concept Laser)

GE Additive, a trailblazer in the additive manufacturing industry, has redefined what’s possible in the world of 3D printing. As part of its robust portfolio, which includes the acquired companies Arcam and Concept Laser, GE Additive continues to drive innovation and progress.

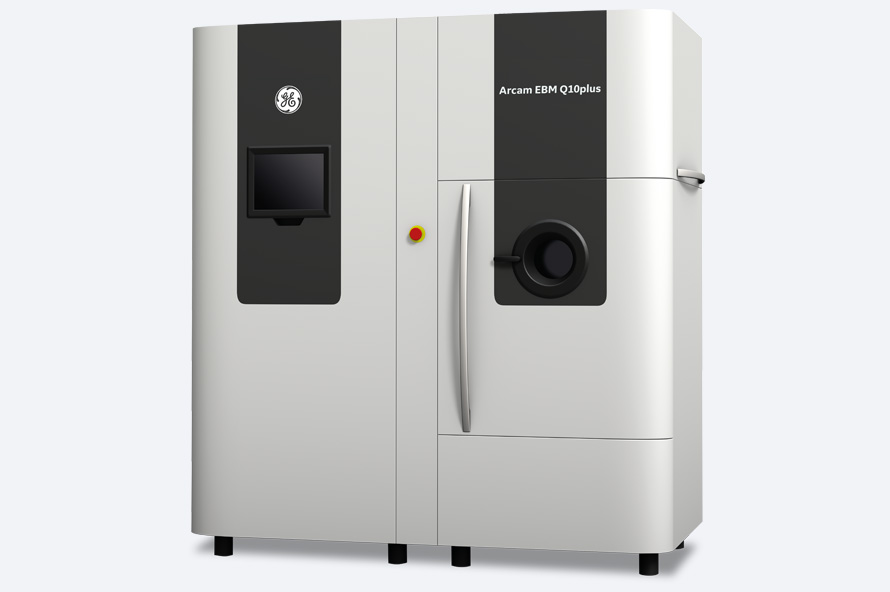

Arcam EBM Q10plus

Arcam EBM Q10plus: The Power of Electron Beam Melting (EBM) The Arcam EBM Q10plus is a shining example of GE Additive’s commitment to excellence in metal 3D printing. This printer leverages the revolutionary electron beam melting (EBM) technology, a process known for its ability to create complex metal parts with unparalleled material properties.

The EBM technique involves using a high-powered electron beam to precisely melt and fuse layers of metal powder, resulting in parts with exceptional integrity and mechanical properties. The Arcam EBM Q10plus takes this technology to new heights, offering manufacturers and innovators a reliable and efficient solution for creating intricate, high-performance metal components.

Industries that support structures that demand both complexity and reliability, such as aerospace and healthcare, find the Arcam EBM Q10plus to be an invaluable asset. Its capacity to deliver intricate designs with dimensional accuracy and superior material properties makes it a go-to choice for applications where precision and strength are non-negotiable.

6. Stratasys (through acquisition of Desktop Metal)

Stratasys, a leading figure in the world of 3D printing, has significantly expanded its influence by acquiring Desktop Metal, a prominent name in the metal additive manufacturing sphere. This acquisition has fortified Stratasys’ position in the industry and enabled them to offer cutting-edge metal 3D printing solutions that cater to a wide range of applications.

Desktop Metal Studio System+

Desktop Metal Studio System+: A standout achievement resulting from this acquisition is the Desktop Metal Studio System+. This innovation has introduced the concept of office-friendly metal 3D printing, making it accessible to a broader audience.

The Studio System+ is specifically designed for rapid prototyping and small-scale production, targeting businesses and individuals who require quick and cost-effective solutions. What sets it apart is its user-friendly approach, which simplifies the often complex metal 3D printing process. This means that even those without extensive experience in additive manufacturing can utilize this system with ease.

The accessibility of the Desktop Metal Studio System+ opens new doors for innovation, allowing businesses, engineers, and designers to rapidly create prototypes and small metal components in-house. This ability to shorten development cycles and reduce production costs is a game-changer for industries ranging from aerospace and automotive to healthcare and beyond.

7. Markforged

Markforged has emerged as a key player in the realm of metal 3D printing with its innovative Metal X printer. What sets this printer apart is its groundbreaking ADAM (Atomic Diffusion Additive Manufacturing) technology, which offers a cost-effective approach to producing high-quality metal parts.

Markforged Metal X 3d printer

Markforged Metal X: It is tailored to address the demands of modern industries that require metal components with precision and reliability. The ADAM process begins with metal powder bound in a plastic matrix, which is deposited layer by layer. This unique approach combines the advantages of both markforged metal and composite 3D printing, ensuring that the resulting parts are strong, durable, and cost-effective.

One of the standout features of the Metal X is its versatility. It accommodates a wide range of metals, including stainless steel, tool steel, and even superalloys, enabling users to select the material that best suits their specific application. This flexibility is a game-changer for industries that require customized metal parts with different material properties.

The cost-effectiveness of the Metal X extends beyond the metal printer part itself. By minimizing material waste and the need for expensive tooling, it makes metal part production accessible to a broader range of businesses. This shift toward more affordable metal 3D printing can have a profound impact on industries like aerospace, automotive, and medical, where complex and precision-engineered metal components are integral.

Choosing the Right Metal 3D Printer for Your Needs

Selecting the most suitable metal 3D printer for your specific applications is crucial. We’ll guide you through the decision-making process by considering various factors:

  • Materials Compatibility: Different metal printers are optimized for specific materials. Understanding which metals you intend to work with is essential.
  • Build Volume: The size of components you plan to create matters. Some printers are better suited for small, intricate parts, while others excel at producing larger components.
  • Accuracy and Resolution: Precision requirements vary across industries. We’ll help you match your needs with a printer’s accuracy and resolution capabilities.
  • Post-Processing Requirements: Consider what happens after the printing process. Some technologies demand minimal post-processing, while others may require extensive finishing.
Stainless Steel (C465) Technology Metal 3D printing

Metal Printing Materials

Metal 3D printing materials encompass a diverse spectrum of metals and alloys, each tailored to specific applications. Titanium, prized for its exceptional strength-to-weight ratio, finds its niche in aerospace components and medical implants. Stainless steel, celebrated for its high corrosion resistance too, is a stalwart choice in industries requiring durability. Aluminum, with its lightweight properties, is embraced in automotive and aerospace sectors. Exotic alloys like Inconel cater to extreme conditions, making them indispensable in high-temperature environments.

Titanium, for instance, boasts biocompatibility and is biologically inert, making it ideal for medical implants. Stainless steel’s resistance to corrosion ensures longevity in harsh environments. Aluminum’s lightweight nature reduces material costs and enhances fuel efficiency in transportation.

Advantages and Limitations of Different Metals

While each metal brings a unique set of advantages, they also carry limitations that influence their applicability. Titanium, although lightweight and robust, is challenging to process due its high corrosion resistance to its high melting point. Stainless steel, while corrosion-resistant, can be heavy. Aluminum’s excellent thermal conductivity makes it challenging to 3D print, as it dissipates heat rapidly.

Understanding these nuances is pivotal for selecting the right material for a given application. Engineers and manufacturers must carefully weigh the benefits against the drawbacks, ensuring that the chosen material aligns with the project’s requirements.

tensile strength

Innovations in Metal Powder Development for 3D Printing

Innovations in metal powder development have propelled metal 3D printing to new frontiers. Researchers continuously refine the production of metal powders, pushing the boundaries of what’s achievable. They work on achieving finer particle sizes, optimizing flow properties, and enhancing particle morphology.

Fine-tuning powder properties is crucial for achieving high-resolution prints with excellent surface quality and reducing post-processing efforts. Innovations in this domain have expanded the range of available materials, enabling 3D printing with even exotic alloys. These developments result in superior printed components, ensuring they meet stringent quality and performance standards.

Applications of Metal 3D Printing

Metal 3D printing has emerged as a game-changing technology, and its applications span across various sectors, revolutionizing the way we design, manufacture, and create. Here, we delve into key industries where metal 3D printing is making a significant impact.

3Dmetal printing heat sinks

A. Metal 3D Printing in Aerospace and Defense

The aerospace and defense industry has eagerly embraced metal 3D printing. This technology allows engineers to create complex, lightweight, and high-performance components that were previously challenging or impossible to manufacture. Turbine blades, structural components, and even entire rocket engines are now being 3D printed with materials like titanium and nickel alloys. The reduced weight and enhanced performance of 3D-printed parts contribute to fuel efficiency, lower emissions, and improved aircraft and spacecraft capabilities. Additionally, it enables rapid prototyping for testing new designs, saving time and resources in the development process.

B. Healthcare Advancements with Medical Implants

3D metal printing Medical Implants

In the healthcare sector, metal 3D printing has opened doors to groundbreaking innovations in the field of medical implants. Customized implants, tailored to each patient’s unique anatomy, can be produced with unprecedented precision. Titanium and cobalt-chromium alloys are common choices for orthopedic implants, such as hip and knee replacements. These implants promote better integration with the patient’s body and reduce the risk of complications. Furthermore, 3D printing enables the production of intricate medical devices, including dental implants, hearing aids, and cranial implants, improving patients’ quality of life.

C. Automotive Industry: Revolutionizing Vehicle Manufacturing

The automotive industry has witnessed a transformation in vehicle manufacturing due to metal 3D printing. It allows for the rapid prototyping of components and the creation of intricate structures that enhance vehicle performance and fuel efficiency. Lightweight aluminum and titanium alloys are employed to produce parts like engine components, suspension systems, and even entire chassis. Electric vehicle (EV) manufacturers, in particular, benefit from the weight reduction that 3D-printed parts offer, thereby extending the range of EVs and optimizing battery efficiency.

D. Architectural and Artistic Creations with Metal 3D Printing

Beyond traditional manufacturing, metal 3D printing has also found its way into the world of art and architecture. Artists and architects leverage this technology to create intricate and imaginative structures, sculptures, and designs. The freedom of design that 3D printing offers allows for the construction of complex, gravity-defying forms that challenge conventional artistic and architectural boundaries. From large-scale installations to fine jewelry, metal 3D printing has become a tool for bringing artistic visions to life.

Advancements in Metal 3D Printing: Pioneering the Future

The realm of metal 3D printing is constantly evolving, driven by innovative breakthroughs and cutting-edge technologies. Here, we delve into the latest advancements shaping the future of this transformative industry.

different shapes metals

The Role of Artificial Intelligence and Machine Learning

Artificial intelligence (AI) and machine learning (ML) are ushering in a new era of metal 3D printing. These technologies play a pivotal role in optimizing the entire additive manufacturing process, from design to production. AI-powered generative design algorithms can create complex, lightweight structures that were previously unimaginable. These designs not only enhance performance but also minimize material usage, contributing to sustainability efforts. ML algorithms analyze data from previous prints to predict and prevent defects, ensuring consistent quality.

Moreover, AI-driven quality control systems monitor the 3D printing process in real time, detecting anomalies and making real-time adjustments to optimize print quality. This level of automation reduces human intervention, speeds up production, and minimizes errors.

Metal 3D Printing on the Nanoscale

One of the most groundbreaking advancements in metal 3D printing is the ability to now print parts on the nanoscale. This level of precision enables the creation of extremely small and intricate components, opening doors to applications in electronics, medical devices, and even quantum computing. By printing at the nanoscale, manufacturers can produce components with unparalleled accuracy, achieving levels of performance that were previously unattainable.

Metal 3D Printing on the Nanoscale build chamber

Researchers are exploring the use of various nanoscale materials, including nanometal powders and nanocomposites, to create custom alloys with extraordinary properties. These materials find applications in fields like microelectronics, photonics, and biotechnology, where precision and miniaturization are paramount.

Sustainable Practices in Metal 3D Printing

Sustainability is a growing concern across industries, and metal 3D printing is no exception:

  • Reduced Material Waste: Metal additive manufacturing is inherently more efficient than traditional subtractive methods. It generates less waste because it only uses the necessary material for each part.
  • Lightweighting: 3D printing allows for complex lattice structures that reduce the weight of parts without compromising their strength. This can lead to more fuel-efficient vehicles and reduced energy consumption in aerospace.
  • Recycling: Some metal 3D printing systems are capable of recycling and reusing excess powder, further minimizing material waste.
  • Localized Production: By enabling on-demand and localized production, metal 3D printing reduces the need for long-distance transportation, contributing to lower carbon emissions.

Additionally, metal 3D printing contributes to sustainability by enabling the design of lightweight, fuel-efficient components for industries like automotive and aerospace. This reduces carbon emissions and conserves energy. Furthermore, the ability to produce parts on-demand and locally minimizes transportation, cutting down on logistical carbon footprints.

precious metals

Metal 3D Printing FAQs

Q. What is metal 3D printing?

A. Metal 3D printing, also known as additive manufacturing, is a technology that uses metal powders to create three-dimensional objects layer thickness. It enables the production of complex and customized metal parts with precision.

Q. What types of metals can be used in metal 3D printing?

A. Various metals and alloys can be used in metal 3D printing, including stainless steel, titanium, aluminum, nickel alloys, and more. The choice of material depends on the specific application and desired mechanical properties, of the final part.

Q. What are the advantages of metal 3D printing?

A. The advantages of metal 3D printing include:
Complex geometries: It can create intricate designs that are impossible with traditional manufacturing.
Customization: Parts can be tailored to individual needs.
Reduced material waste: It’s an efficient process with minimal material wastage.
Rapid prototyping: Quick iteration and testing of designs.
On-demand production: Parts can be manufactured when and where they are needed.

Q. What are the limitations of metal 3D printing?

A. Some limitations include:
Cost: Initial investment and material costs can be high.
Surface finish: Parts may require post-processing for a smooth finish.
Speed: Printing metal parts can be time-consuming.
Size constraints: There are limitations on the size of parts that can be printed.
Complexity: Complex geometries may increase production time and costs.

Q. Where is metal 3D printing used?

A. Metal 3D printing has applications in various industries, including aerospace (for lightweight and complex parts), healthcare (for medical implants and prosthetics), automotive (for customized components), and tooling applications (for molds and dies).

Q. Are 3D-printed metal parts as strong as traditionally manufactured metal parts?

A. 3D-printed metal parts can have comparable strength to traditionally manufactured parts, but it depends on factors like the material, printing parameters, and post-processing. Some 3D-printed parts may require heat treatment or other processes to optimize their mechanical properties and thermal properties further.

Q. How is quality control ensured in metal 3D printing?

A. Quality control involves monitoring and testing throughout the printing process. Non-destructive testing methods like ultrasonic testing and X-ray inspection can be used to detect defects. Additionally, adherence to industry standards and certifications ensures quality.

Q. Is metal 3D printing environmentally friendly?

A. Metal 3D printing can be environmentally friendly due to reduced material waste compared to traditional manufacturing methods. It also allows for localized production, reducing the carbon footprint associated with transportation.

Q. What is the future of metal 3D printing?

A. The future of metal 3D printing is promising. It is expected to see increased adoption across industries, innovations in materials and processes, and greater customization capabilities.

Q. Can individuals and small businesses access metal 3D printing technology?

A. Yes, metal 3D printing services and small-scale metal 3D printers are increasingly available, making the technology accessible to individuals and small businesses for prototyping and limited production runs.

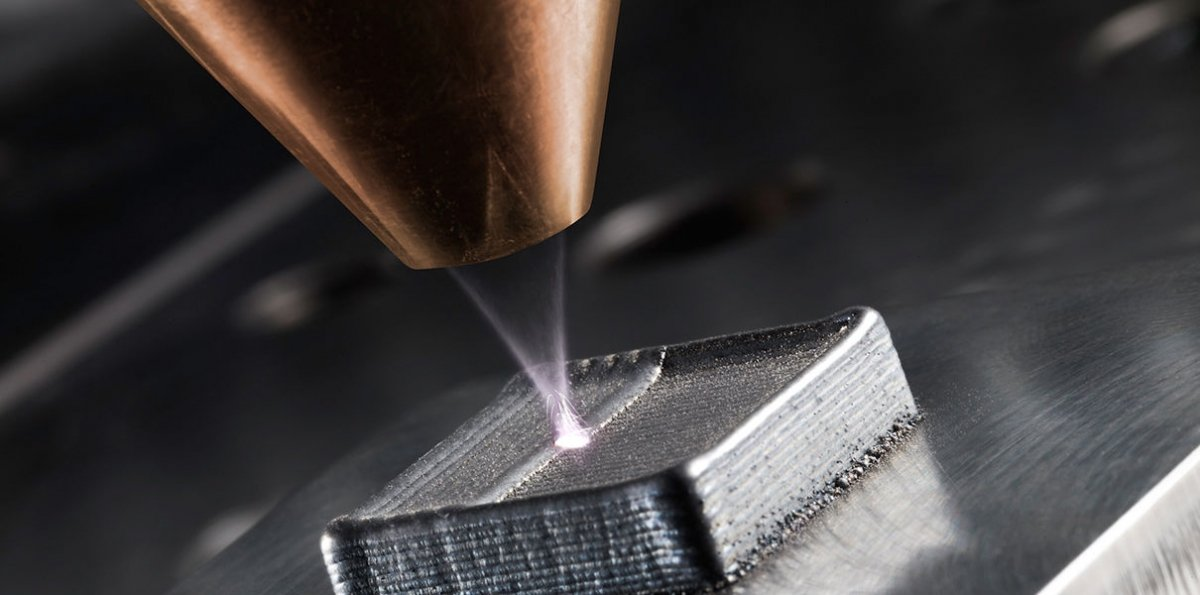

metal binder jetting internal channels

Conclusion

In conclusion, the world of metal 3D printing is a dynamic and transformative field that is reshaping manufacturing and design. With its ability to create intricate and customized metal parts, metal 3D printing opens up new possibilities across industries, from aerospace to healthcare and beyond.

As the technology advances, we can expect to see even more innovative applications and materials emerge. The integration of artificial intelligence and machine learning, along with sustainable practices, will continue to drive progress in this field.

For those considering metal 3D printing for their projects, it’s essential to weigh the advantages, limitations, and cost considerations carefully. Quality control and adherence to regulatory standards are crucial, ensuring the safety and reliability of 3D-printed metal parts.

In this ever-evolving landscape, embracing metal 3D printing means embracing innovation, efficiency, and creativity. As the technology continues to mature, it promises to unlock new frontiers of design and production, offering exciting opportunities for those willing to explore its potential. So, venture forth with curiosity and enthusiasm, and discover the boundless possibilities of metal 3D printing.
